Versatile | Minimal | Resistant
The custom-made roller blind that brings in light and air
The roller shutter that redefines
light and air control
in your living space
Interstice Variants
CLIMATICA is the new extruded aluminum roller shutter designed to modulate the passage of light and air in living spaces, offering the right balance between privacy, comfort, and brightness.
Thanks to the three configurations of the slat interstice, selectable at the time of order, it adapts precisely to every lighting and ventilation requirement.
It can be easily installed as a replacement for traditional roller shutters, without modifying existing guides or accessories.
The extruded aluminum structure and steel details ensure solidity, durability over time, and a minimal design that integrates with any architectural style.

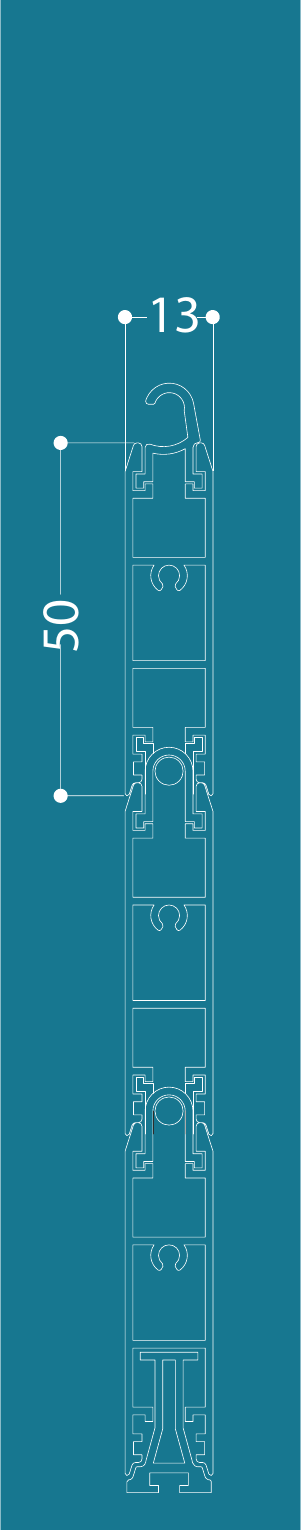

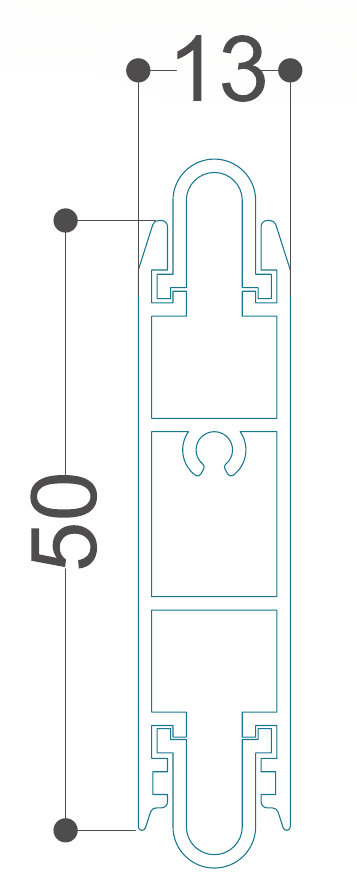

Profile
Profile Size
13 X 50 mmWeight per SQM
approx. 15 KgBars per 1 MT height
20 visibleMaximum allowable height
3500 mmMaximum allowable width

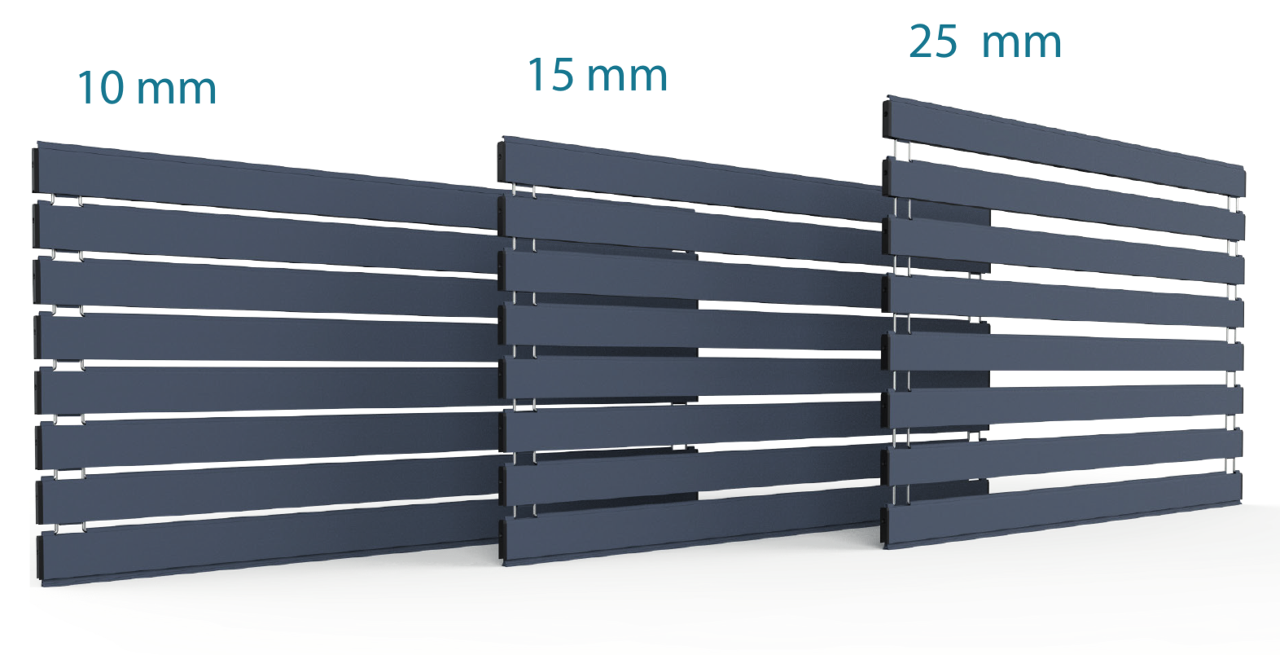

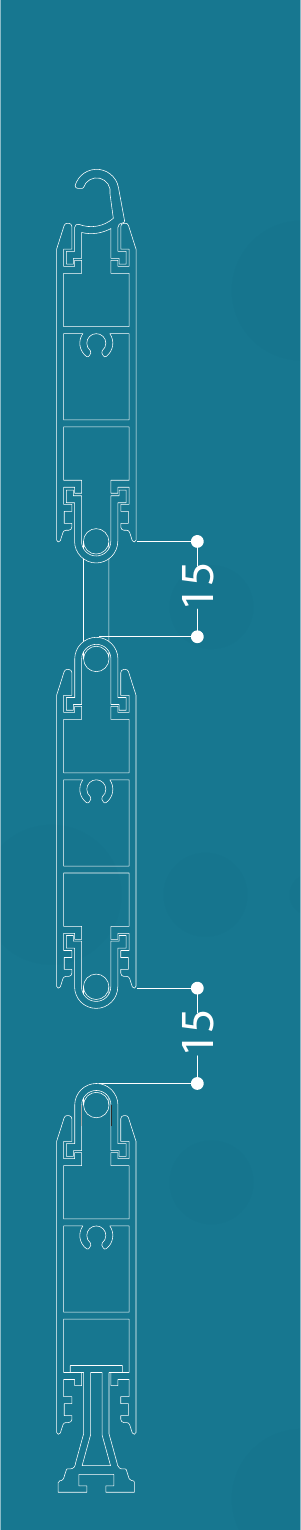

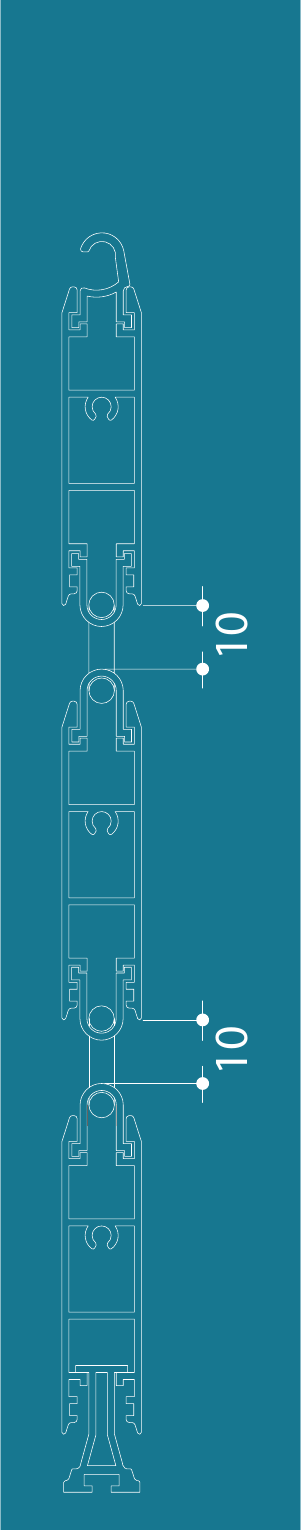

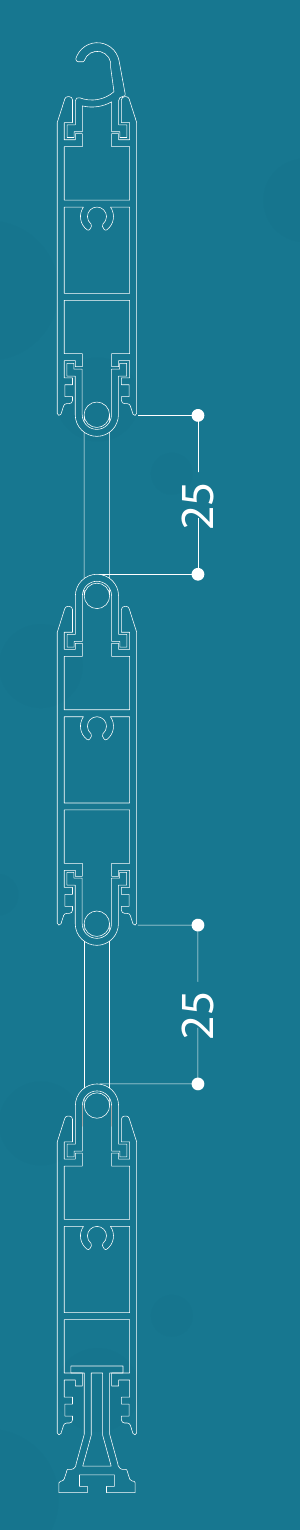

4000 mmINTERSTICE Variants
CLIMATICA Numbers
Closed
Open
Filtered light and increased privacy
Ideal balance between lighting and ventilation
Wide natural light passage and air circulation
Max Height 4000 mm
Max Width 3500 mm
CLIMATICAwindingdimensions
DESIGNED TO ADAPT
The structure of Climatica is designed to ensure maximum compatibility with existing frames.
Its configuration allows installation as a replacement for traditional roller shutters without modifying guides or accessories.
| Light height (mm) | Roller diameter (mm) | Hook | Diameter with tolerance (mm) |
|---|---|---|---|
| 800 | 60 | 25 | 210 |
| 1000 | 60 | 25 | 226 |
| 1200 | 60 | 25 | 242 |
| 1400 | 60 | 25 | 255 |
| 1600 | 60 | 25 | 268 |
| 1800 | 60 | 25 | 280 |
| 2000 | 60 | 25 | 292 |
| 2200 | 60 | 25 | 303 |
| 2400 | 60 | 25 | 313 |
| 2500 | 60 | 25 | 318 |
| 2800 | 60 | 25 | 333 |
| 3000 | 60 | 25 | 342 |
| Light height (mm) | Roller diameter (mm) | Hook | Diameter with tolerance (mm) |
|---|---|---|---|
| 800 | 70 | 15 | 181 |
| 1000 | 70 | 15 | 192 |
| 1200 | 70 | 15 | 203 |
| 1400 | 70 | 15 | 213 |
| 1600 | 70 | 15 | 222 |
| 1800 | 70 | 15 | 231 |
| 2000 | 70 | 15 | 239 |
| 2200 | 70 | 15 | 246 |
| 2400 | 70 | 15 | 254 |
| 2500 | 70 | 15 | 257 |
| 2800 | 70 | 15 | 268 |
| 3000 | 70 | 15 | 274 |
| Light height (mm) | Roller diameter (mm) | Hook | Diameter with tolerance (mm) |
|---|---|---|---|
| 800 | 70 | 25 | 221 |
| 1000 | 70 | 25 | 238 |
| 1200 | 70 | 25 | 253 |
| 1400 | 70 | 25 | 267 |
| 1600 | 70 | 25 | 280 |
| 1800 | 70 | 25 | 292 |
| 2000 | 70 | 25 | 303 |
| 2200 | 70 | 25 | 314 |
| 2400 | 70 | 25 | 324 |
| 2500 | 70 | 25 | 330 |
| 2800 | 70 | 25 | 344 |
| 3000 | 70 | 25 | 353 |
| Light height (mm) | Roller diameter (mm) | Hook | Diameter with tolerance (mm) |
|---|---|---|---|
| 800 | 60 | 10 | 149 |
| 1000 | 60 | 10 | 158 |
| 1200 | 60 | 10 | 167 |
| 1400 | 60 | 10 | 174 |
| 1600 | 60 | 10 | 182 |
| 1800 | 60 | 10 | 188 |
| 2000 | 60 | 10 | 195 |
| 2200 | 60 | 10 | 201 |
| 2400 | 60 | 10 | 207 |
| 2500 | 60 | 10 | 210 |
| 2800 | 60 | 10 | 218 |
| 3000 | 60 | 10 | 223 |
| Light height (mm) | Roller diameter (mm) | Hook | Diameter with tolerance (mm) |
|---|---|---|---|
| 800 | 60 | 15 | 169 |
| 1000 | 60 | 15 | 181 |
| 1200 | 60 | 15 | 192 |
| 1400 | 60 | 15 | 201 |
| 1600 | 60 | 15 | 210 |
| 1800 | 60 | 15 | 219 |
| 2000 | 60 | 15 | 227 |
| 2200 | 60 | 15 | 235 |
| 2400 | 60 | 15 | 242 |
| 2500 | 60 | 15 | 246 |
| 2800 | 60 | 15 | 256 |
| 3000 | 60 | 15 | 263 |
| Light height (mm) | Roller diameter (mm) | Hook | Diameter with tolerance (mm) |
|---|---|---|---|
| 800 | 70 | 10 | 160 |
| 1000 | 70 | 10 | 170 |
| 1200 | 70 | 10 | 178 |
| 1400 | 70 | 10 | 186 |
| 1600 | 70 | 10 | 193 |
| 1800 | 70 | 10 | 200 |
| 2000 | 70 | 10 | 206 |
| 2200 | 70 | 10 | 213 |
| 2400 | 70 | 10 | 218 |
| 2500 | 70 | 10 | 221 |
| 2800 | 70 | 10 | 229 |
| 3000 | 70 | 10 | 235 |
