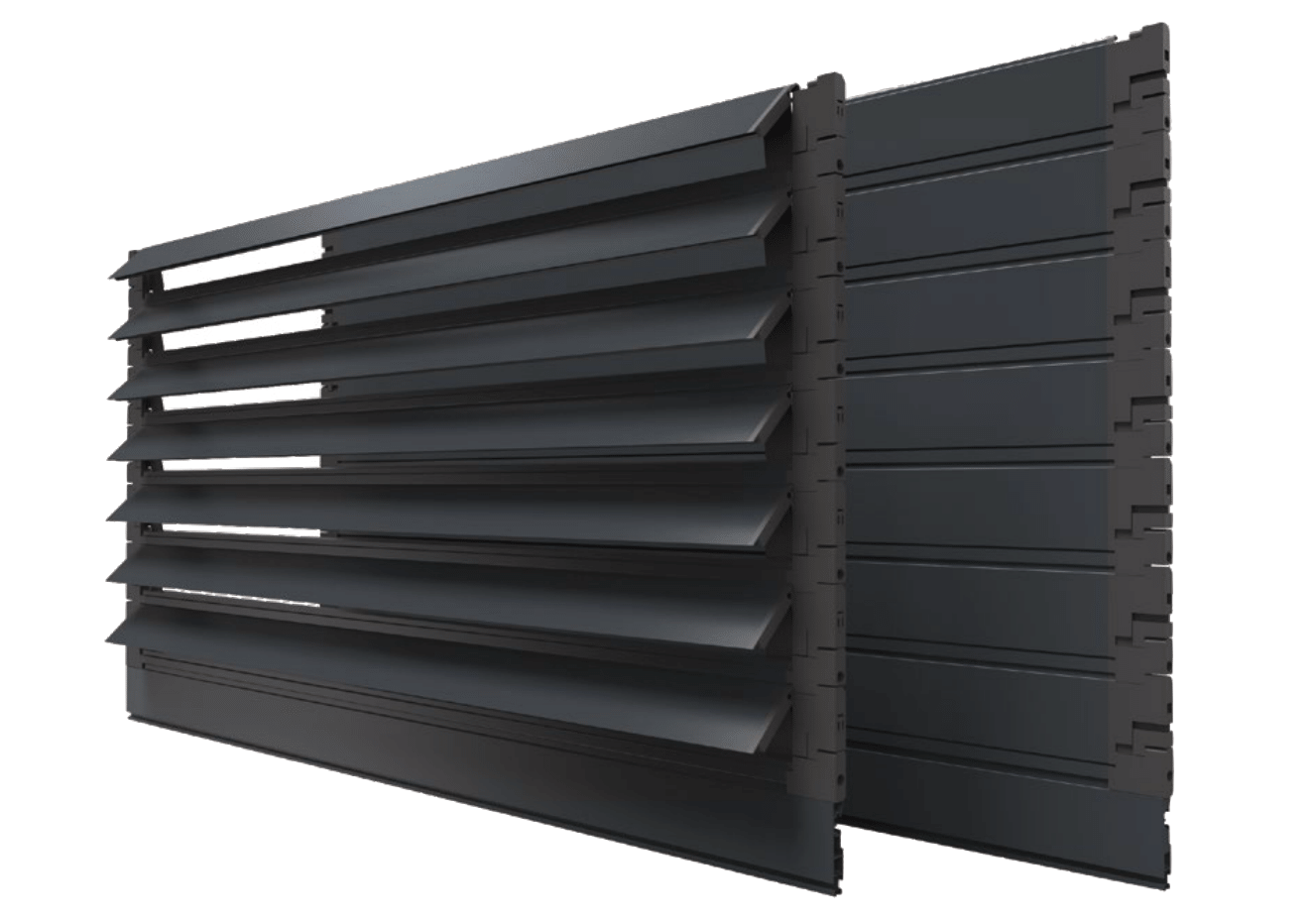

A new one VISIONE for your spaces
VISIONE is an adjustable slat blind
Designed to slide in all standard guides and to roll up completely in standard casings.
The fabric in the closed position allows the slats to self-orient simply by gravity, thus allowing the gradual passage of light and air.

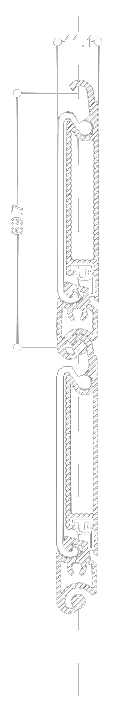

Profile Dimension
69.7 x 11 mm
Weight per square meter
c.ca 10kg
Maximum allowable width
3500 mm
Roll-up diameters on roller (60mm)
| Light Height | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2500 | 2800 | 3000 |
| Diameter | 130 | 135 | 150 | 165 | 175 | 180 | 195 | 205 | 210 | 220 | 230 | 235 |
Roll-up diameters on roller (70mm)
| Light Height | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2500 | 2800 | 3000 |
| Diameter | 140 | 145 | 160 | 175 | 185 | 190 | 205 | 215 | 220 | 230 | 240 | 245 |
11 MM
Designed to slide in all standard guides

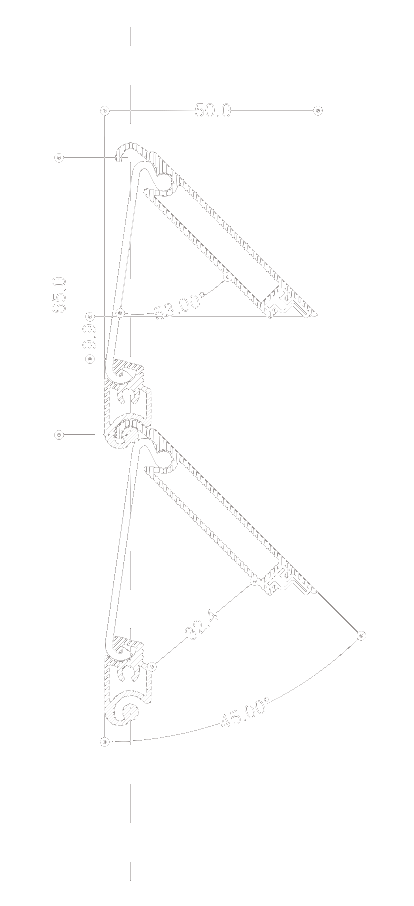

45°
The fabric in the closed position allows the slats to self-orient simply by gravity, thus allowing the gradual passage of light and air.
350 CM

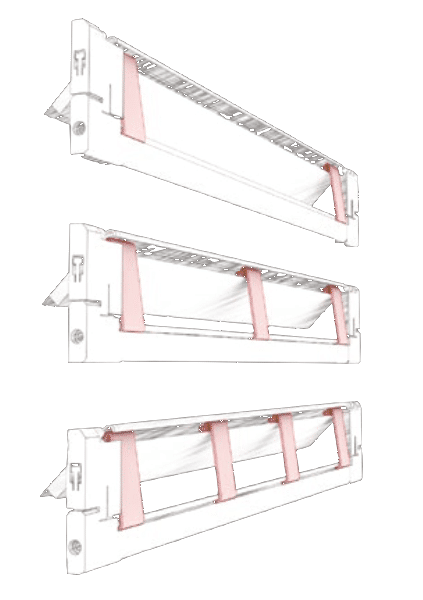

Also designed for large openings, Visione, thanks to its interconnected support system, can cover widths up to 3.5 meters
